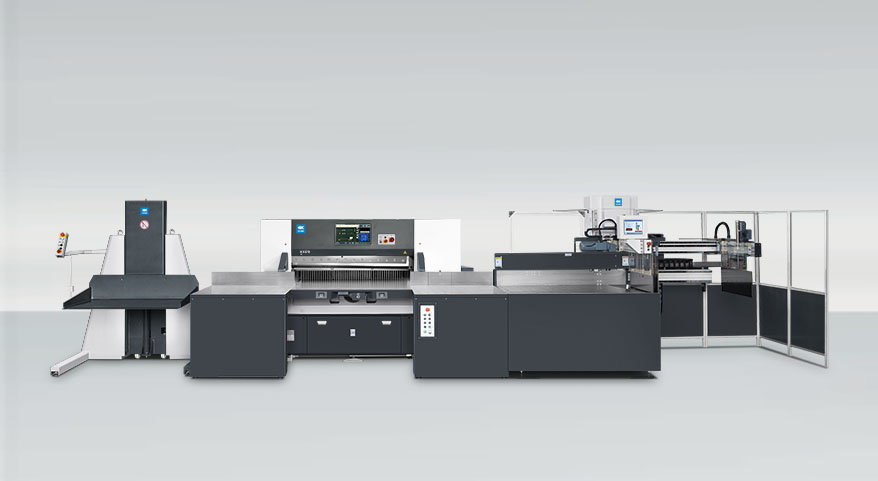

Cutting Line: computerized paper cutting machine, lifter, unloader, etc. This cutting line can make many functions: automatic feeding, unloading, tiding,carrying and piling sheets. It has characteristics of high efficien- cy, low labor intensity, short production time.
|
Technical Parameters |
Unit |
Value |
|
Maximum cutting length |
mm |
1450 |
|
Maximum cutting width |
mm |
1370 |
|
Maximum cutting height |
mm |
165 |
|
Minimum cutting (without pressure plate) |
mm |
25 |
|
Minimum cutting (including pressure plate) |
mm |
90 |
|
Length(cutting point to front table) |
mm |
735 |
|
Length(cutting point to back table) |
mm |
1925 |
|
Height of working platform from ground |
mm |
900 |
|
Additional platform length |
mm |
650（750） |
|
Additional platform width |
mm |
750（1000） |
|
Platen pressure (minimum) |
KN |
1.50 |
|
Platen pressure (maximum) |
KN |
45 |
|
Blade specifications |
mm |
13.75 |
|
Sharpening place (maximum) |
mm |
60 |
|
Cutting speed |
t/m |
45 |
|
Main motivation |
KW |
4 |
|
Voltage |
V |
361-399 |
|
Wire thickness |
mm2 |
2.5 |
|
Technical Parameters |
Unit |
Value |
|
Stoke up to |
mm |
850 |
|
Accumulation amounts(max) |
kg |
1000 |
|
Pallet size |
mm |
800*1200 |
|
Platform(Internal dimension) |
mm |
840*1270 |
|
Total power |
kw |
2.25 |
CONFIGURATION LIST OF U-2 PAPER UNLOADING MACHINE
|
Technical Parameters |
Unit |
Value |
|
Application for size(max) |
mm |
800x1200(950x1260) |
|
Loading capacity(max) |
Kg |
200 |
|
Pile height(max) |
mm |
1300 |
|
The max height of loading paper(from one time) |
mm |
165 |
|
Space for putting pallet(W*D) |
mm |
3250x1550 |
|
Speed cutters |
mm |
1150/1370 |
|
Height of working platform from ground |
mm |
900 |
|
Voltage |
V |
380 |
